Grinders

With twice the power and half the weight the new GTG turbo grinders offer superior high material removal and due to its auto balancer vibration damping offers greatly reduced operator fatigue and greater productivity. Ergonomic detailing in all the Atlas Copco range of grinders decreases the risk of musculoskeletal disorders which produces maximum material removal with minimum effort. We recommend using the Atlas Copco super-light and flexible turbo hose with all Atlas Copco Grinders.

Maximum material removal with minimum effort.

Working in a tough environment places high demands on the tools used and on the operator. The high power-to-weight ratios of our tools make them comfortable to work with and gives you a superior material removal rate with minimum effort. They are powerful and built to last. Our tools are available in all sizes and power outputs. Whether it’s a small, one-handed angle grinder or a 4.5 kW machine, both offer you superior productivity. Our range of grinders includes both vertical and straight versions to cover all needs in a rough grinding environment.

Die grinding

Atlas Copco die grinders are available in straight or angle versions in a wide range of sizes and power outputs. All the tools fulfil the highest standards and requirements in terms of ergonomics, accessibility and productivity. Like all Atlas Copco tools, they are easy to work with and built to last.

Angle Grinders

Our wide range of angle grinders covers all your needs. They are available in many different sizes and models. All our angle grinders can be equipped with spot suction kits to reduce the health risk for operators exposed to potentially dangerous particles.

For cut-off and depressed center wheels, dia. 75-180 mm
These grinders are used for general purpose grinding and cutting off in applications with high demands on productivity and ergonomics.
LSV 19/28/38 grinders are ergonomically designed tools with high power-to-weight ratios. They can be used as one-handed angle grinders. Low vibrations and low noise levels mean that you can work with them all day without strain.
All tools are fitted with a speed governor as standard to ensure optimum process speed at all times. LSV38 models also include a version with an Autobalancer.

Extreme productivity
Extreme productivity grinders are suitable for all rough and heavy grinding tasks.
Our GTG models are powered by a motor with the latest turbine technology which gives extremely high power-to-weight ratios compared to normal vane motors. This means that you can select a lighter, more compact tool without sacrificing the material removal rate. Compared to a vane motor, a turbine motor provides up to 40 percent more efficiency for the same specific job and at the same time reduces the total energy consumption.
LSV grinders have been optimized to get the highest power-to-weight ratio available for conventional vane motors. They are developed to be durable with low service requirements.
All the tools are fitted with a speed governor as standard to ensure optimum process speed at all times. Selected models offer an Autobalancer as standard that reduces unbalanced forces and, in turn, vibrations.

PRO series
PRO grinders are a popular choice for surface preparation in general industry. They are lightweight tools that deliver all the power you need, yet easy to handle. For additional comfort they are equipped with a rubber handle grip and adjustable wheel guard. All grinders except the G2408-series are equipped with a speed governor to ensure the grinding wheel operates at optimum speed.

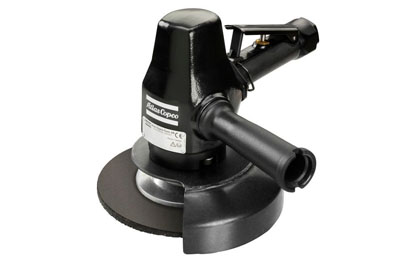

Vertical Grinder

LSS Series
LSS vertical grinders have a robust design and are suitable for rough grinding on open surfaces and cutting off operations. All the tools are fitted with a speed governor as standard to ensure optimum process speed at all times. Selected models offer an Autobalancer as standard that reduces unbalanced forces and, in turn, vibrations.

PRO series
PRO grinders are a popular choice for high quality finishing and general surface preparation. They are durable, lightweight tools that deliver all the power you need, yet easy to handle. All grinders, except the G2408-series, have built-in speed governors running the grinding wheel at optimal speed.

The rigid design with a vertically standing air motor and nodular cast iron cylinder gives impressively long service life and durability. The nodular cast iron has a lubricating effect, which prolongs the intervals between service. The vertical grinders are suitable for very rough grinding and cutting off operations on open surfaces.

Cup wheel grinder

For rough grinding on open surfaces with cup wheels or wire brushes. Applications of this type call for tools with high power outputs.

GTG40 is powered by a turbine motor, which gives an extremely high power-to-weight ratio compared to a vane motor. In addition, the efficiency of a turbine motor is much higher and reduces energy consumption for the same specific job by up to 40% compared to a conventional vane grinder.

LSS vertical grinders have a rigid design that gives reliability and long service intervals.

Straight grinder

For straight wheels
Straight grinders are normally used when grinding inside larger cavities or on open surfaces.
GTR 40 is the most powerful straight grinder in our range. The power of the turbine makes it one of the best in its class. LSR 43/48/64 tools are durable and ideal for tougher applications. The LSR 48 has an Autobalancer as standard to minimize vibrations. LSR 28 is for lighter applications where accessibility is the first priority. A highly efficient dampening system minimizes vibration.

For cone wheels
Straight grinders with cone wheels or collets are suitable for grinding or smoothing of edges, welds, holes and cavities in castings. They require rough abrasives, which must be attached to the tool with a rigid shank or to be mounted directly to the spindle. The power ranges from 0.7 kW to 2 kW.
All Atlas Copco tools are designed with focus on operator ergonomics and maximum power, the best combination for maximum productivity. The LSR28 and 38 are suitable for lighter applications where accessibility is first priority. LSR43 has a proven and rigid design, and is suitable for those really tough applications where durability is needed.
If you need maximum power, then LSR48 is the natural choice. You will have access to 2 kW in combination with an autobalancer for even less vibrations.

Die Grinder

Atlas Copco die grinders are available in straight or angle versions in a wide range of sizes and power outputs. All the tools fulfil the highest standards and requirements in terms of ergonomics, accessibility and productivity. Like all Atlas Copco tools, they are easy to work with and built to last. All our die grinders can be equipped with spot suction kits to reduce the health risk for operators exposed to potentially dangerous particles.

Up to 0.51 kw
Die grinders are an excellent choice for high quality finishing and surface preparation in applications where accessibility is your first priority.
Atlas Copco die grinders are high quality tools with compact, ergonomic designs that offer excellent accessibility.
LSF12/19 are straight models, ergonomically designed for operator comfort and equipped with a speed governor for optimum process speed. LSF 19 models are available in scatter damping versions, which give improved life length of burrs and reduce vibrations for the operator. LSV12/19 are angle versions with the same features as the straight models. LSF07 is a high-speed pencil-type tool for precision grinding and polishing.

Between 0.66-1.35 kw
In applications where you want more power but still need accessibility, these die grinders will be your first choice.
LSF 28/38 die grinders are designed with focus on power and productivity. The tools are equipped with a speed governor for optimum process speed. They are available in scatter damping versions, which give improved life length of burrs and reduced vibrations for the operator.

PRO series
PRO die grinders make easy work of fine grinding and finishing as well as buffing and rough finishing. The PRO die grinders are designed to be powerful and lightweight.

LSV39 Angle Grinder

A grinder that re-writes the industry standards
We made the impossible possible and designed the most powerful vane grinder for it size on the market. With the incredible 1800W, in a small size, we are stepping up the game and allowing our customers to be even more productive. Whatever your requirements – you’ll find your next tool in the 39-series.

Longer Service Life
The new, extra durable angle gear is nearly maintenance free, ensuring you many years of excellent function.

More power – more productivity
Atlas Copco’s LSV 39 provides 50% higher output than many other grinders on the market, and is the most powerful grinder in it’s size.

Ergonomic design – less strain on the operator
Good ergonomics characterizes the 39-series. To help reduce operator stress and fatigue further, we have
standardized on the usage of an Autobalancer on our grinder.
